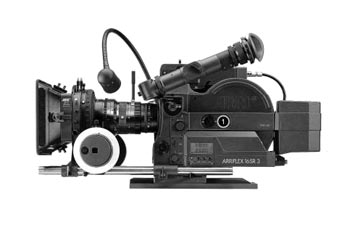

ARRI SR3
Final and most advanced 16SR-series camera (1992); the only one that natively supports Super 16 without a separate film gate, via an off-set PL mount. Full timecode integrated into camera electronics and magazines. Available in standard sync-sound and High-Speed (HS/MOS) versions.
- Format: Std 16 & Super 16 (easy format change)
- Shutter: manually adjustable 180°, 172.8°, 144°, 135°, 90°
- Speed: 5–75 fps (standard); 5–150 fps (HS), crystal accurate to 0.001 fps
- Lens mount: Ø54mm PL (bayonet adapter available)
- Magazine: 400 ft with integrated timecode
- Noise: 20 dB(A) ±2 (standard); 27 dB(A) ±2 (HS)
- Weight: ~7 kg (15.4 lb) with loaded 400 ft mag
- Power: 24V DC
PDF Manual Here
PDF Quick Guide Here
